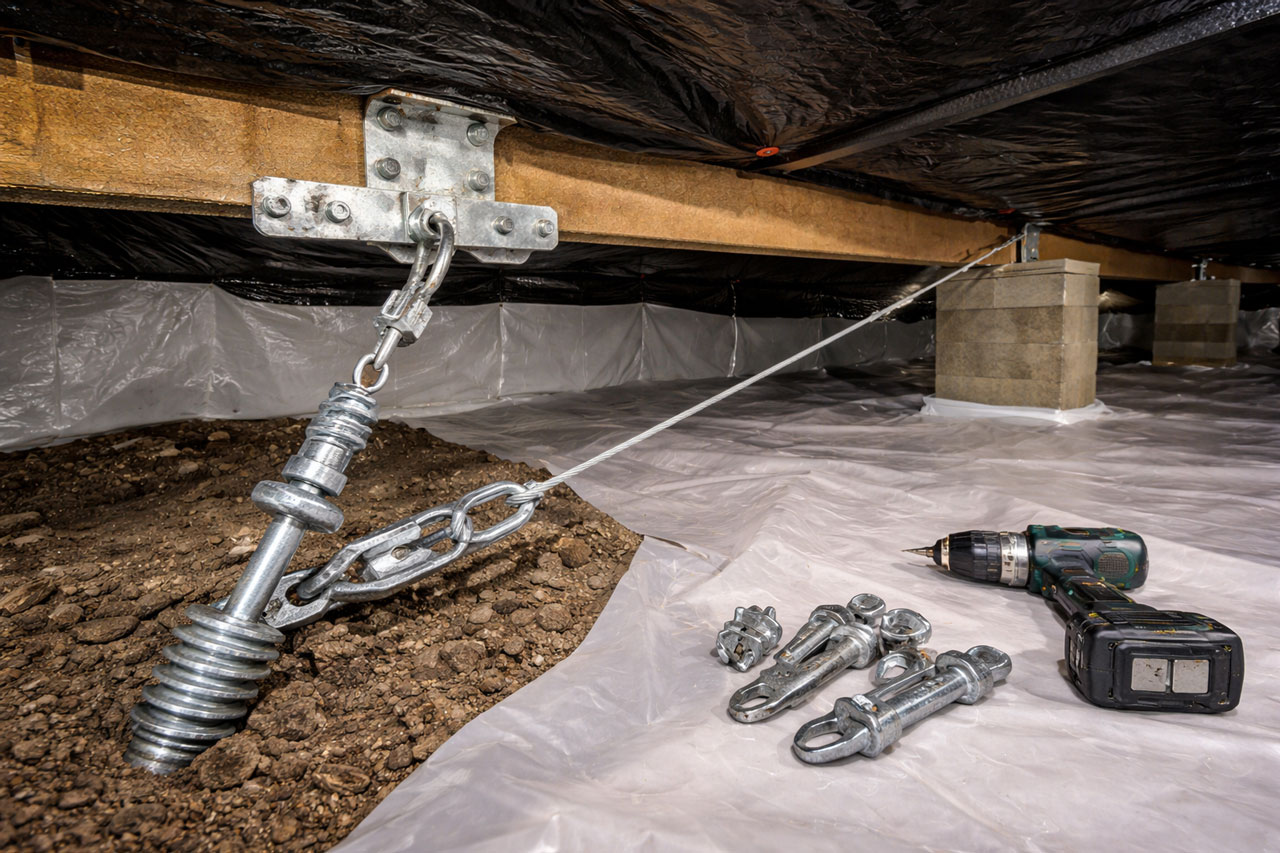

A ground anchor is essentially a helix or plate driven into the soil, connected by a steel strap to your home’s frame. It resists the uplift and sliding forces a storm pushes against the broad side of the home. Several things work against it, and in coastal Florida they tend to show up together.
None of that is visible from your yard. The anchor head can look untouched while its grip below the surface has quietly weakened. This is the single most misunderstood thing about tie-downs, and it is why a visual glance is not an inspection.
5.0 ★★★★★ from 35 Google reviews
You do not need to be a contractor to spot most of these. If you can safely look under the home or behind the skirting:
Because sandy soil can loosen an anchor with no sign at all above ground, a strap that still looks fine is not proof the anchor below is holding. When in doubt, have the holding power checked rather than assumed.
When we find loose anchors, we usually find company: sagging belly insulation, a torn or missing ground moisture barrier, or piers that have settled out of level right alongside.
That is not a coincidence. The same standing moisture that rots a belly is what corrodes an anchor stem, and a home sitting unevenly on settled piers puts uneven load into the straps. So we look at the whole under-home system rather than one strap at a time. If your piers have shifted, we level the home first, because anchoring should land on a home that is sitting right.
Manufactured homes are built to the federal HUD code, and part of that code sets how a home must be anchored for the wind zone it sits in. Florida falls into the higher wind zones, which means our homes are required to be tied down more securely than the same home would be inland in a low-wind state. Higher wind zones call for more anchors, higher-rated hardware, and tighter spacing.
Florida also has its own installation rules for anchors and tie-downs, covering spacing, holding power, and the use of longitudinal, end-to-end stabilizing systems in addition to the diagonal straps along the sides.
The details change depending on the age of your home and where it sits, so we will not quote exact figures for your home on a web page. Two things are worth knowing as an owner. An anchoring system that was legal and adequate when your home was set may no longer match current expectations. And hardware that has corroded or loosened almost certainly does not deliver its original rated holding power. We confirm the current requirements for your address with your local building department rather than guessing, and we use anchors rated for the job.
The reason any of this exists is simple. A manufactured home presents a large flat side to the wind and weighs far less than a stick-built house. Proper anchoring is what keeps it from sliding or lifting when a storm pushes on it.
Commonly requested during home sales, insurance reviews, and storm preparation. A thorough inspection follows the whole load path from the frame to the soil.
Re-anchoring is not always a full replacement. Sometimes a home needs a few corroded straps swapped, anchors re-tensioned, and a couple of missing anchors added to bring the count up. On older homes in sandy soil, the better path is often new galvanized anchors and straps throughout so the whole system is fresh and matched. What we do depends on what we find, and we will tell you which situation you are in.
For homes missing tie-downs or running outdated systems, we install proper anchoring: removing failed hardware, driving new anchors to the correct depth for the soil, adding an impact plate or collar where sandy conditions call for it, then connecting and tensioning new straps and verifying the finished system is tight and correctly spaced.
We inspect existing tie downs and anchors to check for:
A thorough inspection follows the whole load path from the frame to the soil:
Yes. Most mobile and manufactured homes must be properly anchored, especially for insurance and resale. The specific requirements depend on your home and location, so confirm them for your address with your local building department.
Most inspections and repairs are completed in a single visit.
Yes. Rust, soil movement, and age weaken systems, especially in this climate.
Probably. Sandy soil can loosen an anchor underground with no visible sign above it, and a rusted strap can look intact right up until it snaps under load.
No. Skirting blocks wind-driven rain and debris, but it does not anchor anything. Anchoring is what holds the home down.
Before hurricane season, which runs June 1 through November 30, rather than after. Checking beforehand gives you time to correct anything found.
Yes, and on a home that has settled we usually level first so the anchoring lands on a home sitting correctly.
Whichever the inspection supports. Partial repair is common and appropriate when the rest of the system is sound.
East Coast Vapor Barrier is owner-led by Shawn Callahan, holding Florida Insulator and Home Improvement Contractor License IH/1143670. When you call, you work directly with the owner. We inspect the system, explain what is wrong, and correct it properly. No upselling, no shortcuts.
We serve Melbourne, Palm Bay, Cocoa, Titusville, Vero Beach, Daytona Beach, Barefoot Bay, Micco, Merritt Island, Melbourne Beach, Saint Cloud, and Edgewater, across Brevard, Volusia, Indian River, and Osceola counties.
Call 561-909-7759 or contact us for a free inspection.
