East Coast Vapor Barrier installs and replaces the mobile home vapor barrier under homes in Daytona Beach, and works under mobile and manufactured homes only. Almost none of that housing is on the beachside. Census counts for 2020 to 2024 put 2,095 mobile homes in ZIP 32119 and 2,766 in ZIP 32127. Beachside 32118 has very few.
Shawn Callahan owns the company and does the inspections and the installations himself. Call (561) 909-7759.
Six services cover what goes wrong under a manufactured home. The ground at the address decides which one matters most.
The first two lead here for a reason. The wettest readings in this market put the water table about three inches below grade from June through September. Insulation is what that ruins first.
Where water sits inches under the surface all summer, the ground layer does more work than the one on the frame.
A ground moisture barrier goes over the bare soil under the home, so crawl space moisture is stopped before it reaches the floor.
The survey returns the Tuscawilla-Urban land complex at three addresses: 2300 South Nova Road, 918 Reed Canal Road and 3450 South Nova Road. It is poorly drained and hydric rated yes. The top of the wet zone sits about three inches below grade in June, July, August and September. Those are the four wettest months of the year at the airport gauge.
Older barriers tear, slide out of position and break down where animals get under the home. The failing material comes out and new barrier is laid and secured. Where the barrier sits matters more on this corridor than most. All three of the Nova Road and Reed Canal Road addresses return the same hydric rated Tuscawilla map unit, so a barrier that has slid is leaving hydric ground open to the floor above it.
Homes with a heavy moisture load often need both layers, one on the ground and one under the floor. Those three addresses sit in South Daytona and Port Orange, not inside Daytona Beach city limits, whatever the postal address says. The full system is set out on ground moisture barrier work.
Wet insulation fails first here, and it gets no dry stretch to recover in.

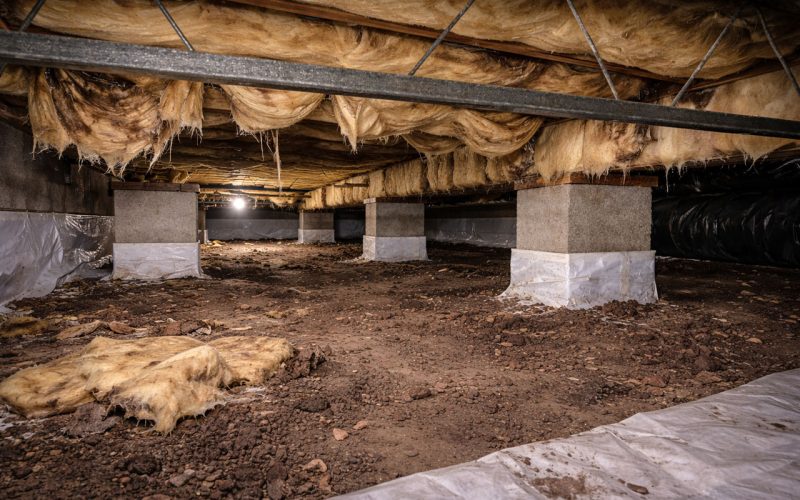

Insulation that has taken on soil moisture sags, packs down and stops holding heat, and it keeps damp pressed against the floor above it. At station USW00012834 at Daytona Beach International Airport, 31.53 of the 51.25 inches of annual rain falls between June and October.

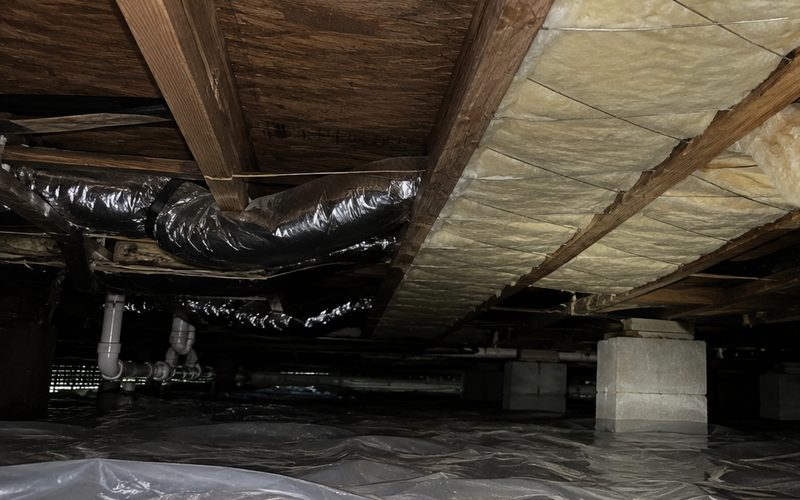

New insulation made for under-home use goes in once the space is clear. Mean dew point at that station peaks at 73.2 degrees in August, on NOAA’s hourly normals for 1981 to 2010. The average overnight low in August is 74.1 degrees. Air that warm and that wet will not dry a soaked batt out.
New insulation is secured and covered with barrier, so the failure does not repeat a few summers later. See what under-home insulation removal and replacement involves.
Vapor barrier work is the core of the business, and here the right answer changes community by community.

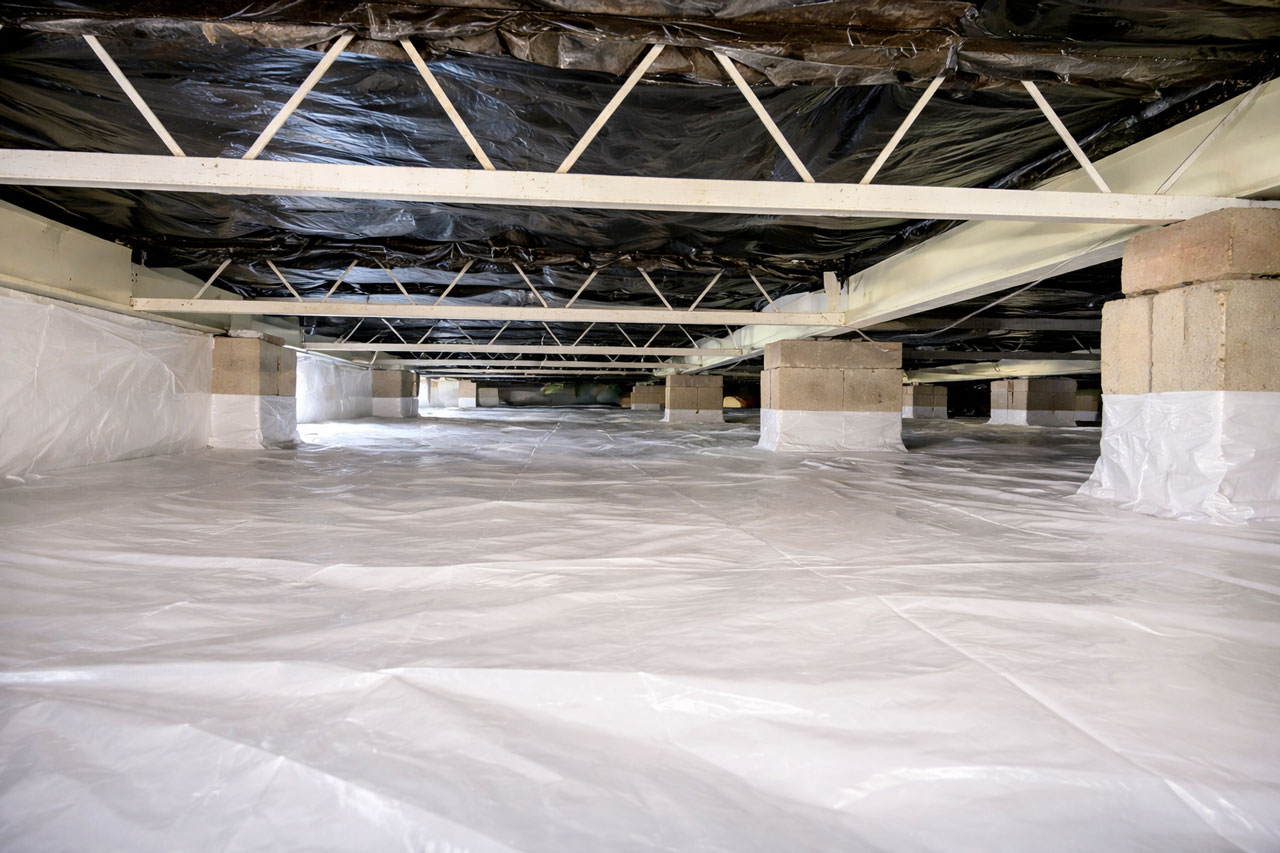

The vapor barrier, sometimes called the belly wrap, is the layer under the floor that keeps ground moisture out of the insulation.
Three 55+ communities inside Daytona Beach city limits sit on three different map units. All three are within 4.63 miles of each other.
The barrier goes in the same way at all three. What it holds back does not.
Many homes built between the 1970s and the 1990s now have barriers that are torn, sagging or gone. The old material comes out and new barrier goes in, sealed back to the frame. Timing follows the rain here. September is the wettest month of the year at the Daytona Beach airport station, at 7.15 inches on the 1991 to 2020 normals.
Where damage is limited to a few sections, from animals, weather or age, those areas can be repaired instead of replaced. A home on the moderately well drained Daytona sand at Carriage Cove is a better candidate for that than one on the hydric Tuscawilla ground south of the city line. Both routes are covered on mobile home vapor barrier installation and replacement.
An anchor holds in soil, and the soil under this city is not one thing.

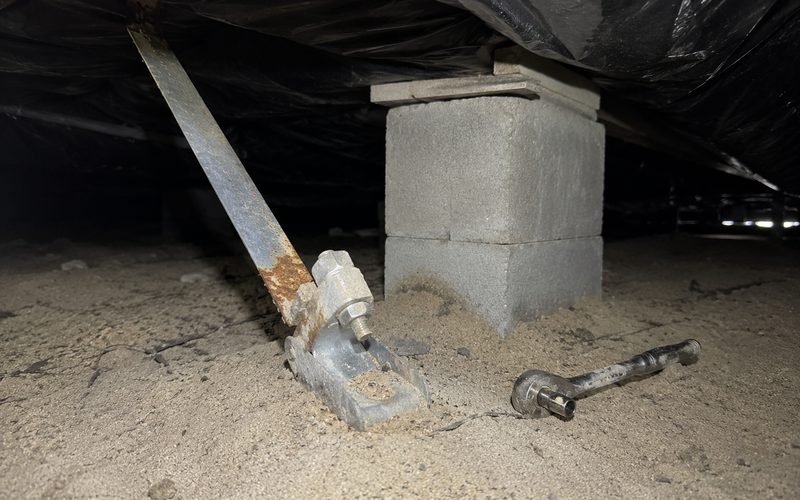

An inspection looks for loose or missing straps, rusted or deteriorated components, improper spacing and signs of movement or settling. It is commonly asked for around a home sale and ahead of storm season. In October 2024 the airport station recorded 54 knots sustained and a 76 knot gust as Hurricane Milton passed. That is what the anchors hold against.
Tightening, replacing damaged components and correcting a bad original installation is usually enough, without a full replacement. Hardware that has spent decades in the hydric Tuscawilla ground on the Nova Road corridor has had a different life. Compare it with hardware at 1247 LPGA Boulevard, where the survey records no seasonal high water table at all.
Homes with missing tie-downs, or an outdated system still in the ground, get a new set installed to hold against movement, wind and shifting soil. The detail is on tie-downs and anchors for manufactured homes.
Piers rest on the ground the water table moves through.
Pier alignment, spacing, settling and load distribution are checked to find what is behind an uneven floor. Height above sea level does not predict it here. Colonial Colony South on Beville Road is the highest of the three in-city sites at about 25.9 feet, and it still carries one of the shallower wet zones.

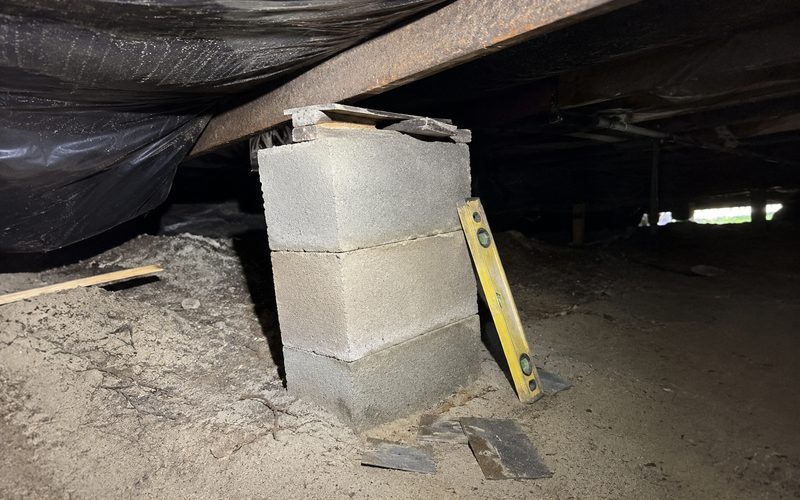

Settled or uneven piers are shimmed and adjusted so the support returns to level and the stress comes off the frame. Between 17 and 23 May 2009 the airport gauge took 20.63 inches, which the National Weather Service called by far the wettest May on record since 1923. Bearing soil that stays saturated for a week does move.
Where several support points have gone out together, they are corrected as a set rather than one at a time. That is what a floor that dips in one room and holds in the next usually needs. How that is done is set out on pier shimming and leveling.
Skirting is the wall between wet season air and everything the barriers are protecting.
New skirting goes on with access points kept open, so the barrier, the insulation and the piers can be reached later. Each installation is planned to work with the moisture and vapor barrier systems already under that home. In ZIP 32127, 11.9 percent of the housing is seasonal or occasional use, so a share of these homes stand closed through the wettest months.
Missing or damaged panels let animals, blown debris and damp air straight under the floor, which undoes what the barriers are doing. Damaged sections are repaired or replaced, and badly fitted skirting is reset. The Daytona Beach airport station records rain on 119.3 days in an average year, and a gap in the skirting is open for every one of them. More on skirting for manufactured homes.
Given what the soil survey says about this city, a number over the phone is a guess. A home on the excessively drained Paola-Urban land complex off LPGA Boulevard, in unincorporated Volusia County, and a home on hydric ground off Reed Canal Road are not the same job.
USDA soil survey data is published by map unit and can be queried at one street address. Do that at seven addresses here and the answers are nowhere near each other.
| Address | Community | City limits | Soil map unit and drainage | Ground elevation | Top of the wet zone | What that means under a home |
|---|---|---|---|---|---|---|
| 1100 8th St, 32117 | Colonial Colony North, address from a directory listing | Daytona Beach city | Holopaw sand, mukey 1544127, poorly drained | 9.81 ft | About 10 in, June to October. About 12 in, November | Water within a foot of the surface right through the wet season |
| 1275 Beville Rd, 32119 | Colonial Colony South | Daytona Beach city | Myakka, mukey 1544134, poorly drained | 25.86 ft | About 12 in, June to November. About 18 in, December and January. About 30 in, February. Deeper through spring | Wet all summer, drying down slowly through winter |
| 5 Carriage Cove Way, 32119 | Carriage Cove | Daytona Beach city | Daytona sand, mukey 1544117, moderately well drained | 22.39 ft | About 50 in, June to October. Deeper the rest of the year | Water stays well below the frame most of the year |
| 1247 LPGA Blvd, 32117 | Hillside, directory listing | Unincorporated Volusia County, Daytona Beach mailing address | Paola, mukey 1544147, excessively drained | 29.89 ft | No seasonal high water table recorded | Deep dry sand, the opposite case |
| 2300 S Nova Rd, 32119 | Summershade Grove, directory listing | South Daytona city | Tuscawilla, mukey 1544176, poorly drained, hydric yes | 10.45 ft | About 3 in, June through September. No record for the other eight months | Water within a hand’s width of grade in the wettest months |
| 918 Reed Canal Rd, 32119 | Lakeview Estates | South Daytona city | Tuscawilla, mukey 1544176, poorly drained, hydric yes | 9.87 ft | About 3 in, June through September. No record for the other eight months | The same ground as above |
| 3450 S Nova Rd, 32119 | The Landings, directory listing | Port Orange city | Tuscawilla, mukey 1544176, poorly drained, hydric yes | 10.15 ft | About 3 in, June through September. No record for the other eight months | The same ground as above |
Height above sea level does not sort it out. The map unit does. The blank months in the Tuscawilla rows are a gap in the survey’s coverage, not a finding that the ground dries out.
Rain lands on top of that. NOAA’s 1991 to 2020 normals for station USW00012834 put annual rainfall at 51.25 inches, 31.53 of it between June and October. Only 1,398 mobile homes sit inside the city limits, 3.3 percent of the housing, while the two ZIPs above run at 16.1 and 17.1 percent.
The city describes its own low ground in its own words. The FDOT Nova Canal sits on the east side of Nova Road. It “has been identified as the major cause of flood damage to the City of Daytona Beach in the topographically low area generally bounded by Nova Road, Orange Avenue, U.S. 1 and Beville Road (AKA 'the bowl')”. In the May 2009 event the city recorded flooding of 790 structures.
Water that reaches the belly does not drain back out. That is why checking the underside before storm season beats checking it after.
5.0 ★★★★★ from 35 Google reviews
Shawn does the inspection. Shawn does the install. There is no salesperson in between, and the license is IH/1143670.
The Google rating is 5.0 from 35 reviews for the company as a whole, not for any one city. Read more about who you are dealing with and the reviews themselves.
The geography, straight. The company is based in Melbourne. Daytona Beach is 81.8 miles north of that base in a straight line, at the far edge of the area it covers. There is no Daytona Beach storefront.
Daytona Beach, ZIP 32119 and ZIP 32127. Where nearly all of this market’s manufactured housing sits.
South Daytona and Port Orange. 1,036 and 4,979 mobile homes, on the corridor south of the city line where the ground turns hydric.
Holly Hill. 375 mobile homes, north of the city. No soil point was queried there, so nothing on this page claims its ground behaves like the southern corridor.
Volusia County. 22,581 mobile homes, tenth of Florida’s 67 counties.
South of the county line. Two more pages: vapor barrier work in Titusville, Brevard County and the same six services in Cocoa.
There is no published figure for it. The honest answer is that it depends on what is under the home. Barrier film goes brittle with age, staples and tape let go, and animals open it up. Homes built between the 1970s and the 1990s are the ones most often found with barriers torn or partly gone.
What shortens the life here is that the ground and the air stay wet together. At the Daytona Beach airport station, 31.53 of the 51.25 inches of annual rain falls between June and October. Vapor barrier replacement starts with going under and photographing what is left.
If it has taken on moisture, yes. Wet batts sag, pack down and hold damp against the subfloor. They do not dry back out in this climate.
Under-home insulation removal and replacement takes the old material out and puts new insulation made for under-home use in. That is then covered with barrier, so the failure does not repeat.
On the Nova Road and Reed Canal Road corridor, the survey puts the top of the wet zone about three inches below grade. That holds from June through September. Insulation left in place there sits directly above saturated ground for a third of the year.
Sometimes both, and the address decides it. A ground moisture barrier stops soil moisture rising in the first place. The vapor barrier under the floor keeps what does rise off the insulation and the subfloor.
At 5 Carriage Cove Way the survey puts water about 50 inches down through the summer. South of the city line on hydric Tuscawilla ground it is about three inches from June through September. Homes with a heavy moisture load are the ones that usually want the ground layer and the under-floor layer working together.
Worth looking at, particularly before storm season and around a home sale. A tie-down inspection checks for loose or missing straps, rusted or deteriorated components, improper spacing and signs of the home moving or settling.
Anchors in poorly drained ground live a harder life than anchors in the excessively drained Paola-Urban land complex out on LPGA Boulevard, which is unincorporated Volusia County on a Daytona Beach postal address. There the survey records no seasonal high water table at all. For scale, the Daytona Beach airport station logged 54 knots sustained and a 76 knot gust during Hurricane Milton in October 2024.
It matters. Torn or missing skirting turns the space under the home into an open vent. That lets animals, blown debris and damp air at the insulation and the barriers.
Mobile home skirting installation and repair keeps that wall intact while leaving access points open. Each install is planned around the moisture and vapor barrier systems already under the home.
The city’s own name for its low ground is “the bowl”, the area bounded by Nova Road, Orange Avenue, U.S. 1 and Beville Road. Two of those four streets, Nova Road and Beville Road, carry named mobile home communities in this market.
Often not, and for this work the map unit matters more than the mailing address. 1247 LPGA Boulevard carries a Daytona Beach postal city and sits in no incorporated place at all. That makes it unincorporated Volusia County. 1900 LPGA Boulevard on the same road returns Daytona Beach city.
The Nova Road and Reed Canal Road addresses that directories list under Daytona Beach fall inside South Daytona and Port Orange. We cover that corridor. Ground moisture barrier work there deals with very different soil from the same job inside the city limits.
If the home is in 32119, 32127, or anywhere else carrying a Daytona Beach address, the ground under it is worth looking at before the next June. Call (561) 909-7759, email info@eastcoastvaporbarrier.com, or book an under-home inspection. Shawn takes the call, drives up, goes under the home and shows you the photographs.
